View Issue Details

IDProjectCategoryView StatusLast Update
0000849bareos-core[All Projects] webuipublic2017-09-01 12:17
Reporterchaos_prevailsAssigned Tofrank
PrioritynormalSeverityminorReproducibilityalways
Status assignedResolutionopen
PlatformlinuxOSUbuntuOS Version16.04.3 amd64
Product Version16.2.4
Fixed in Version
Summary0000849: JSON Errors when managing autoloader on remote storage via webui
DescriptionWhen using a remote storage with an autoloader, I get JSON errors when trying to manage the autoloader. All 3 tables (import/export slots, drives, slots) stay empty. bareos-dir and bareos-webui are installed on the same machine, bareos-sd with the autoloader is installed on another machine

The JSON error messages are:

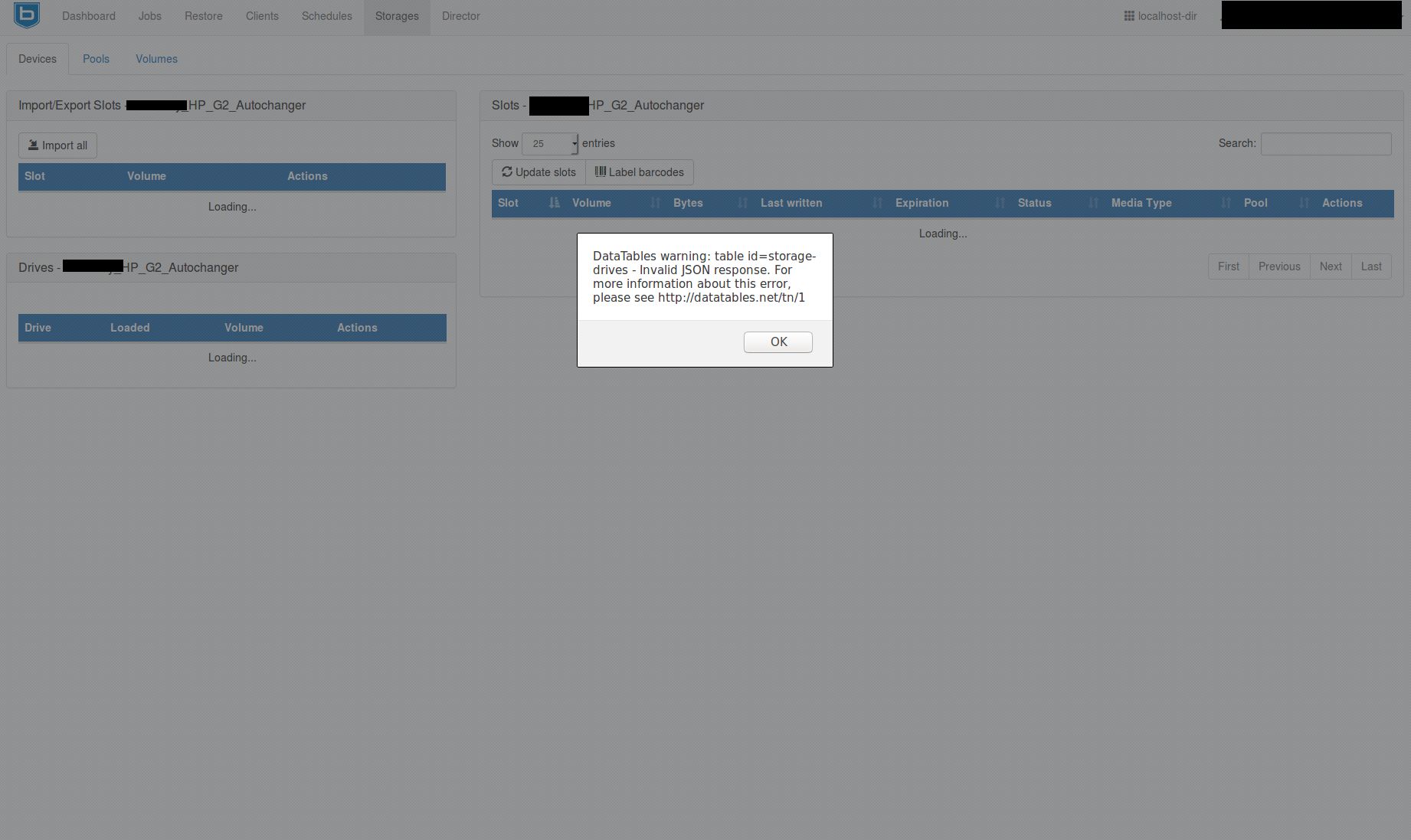

"DataTables warning: table id=storage-drives - Invalid JSON response. For more information about this error, please see http://datatables.net/tn/1"

upon clicking OK, I get:

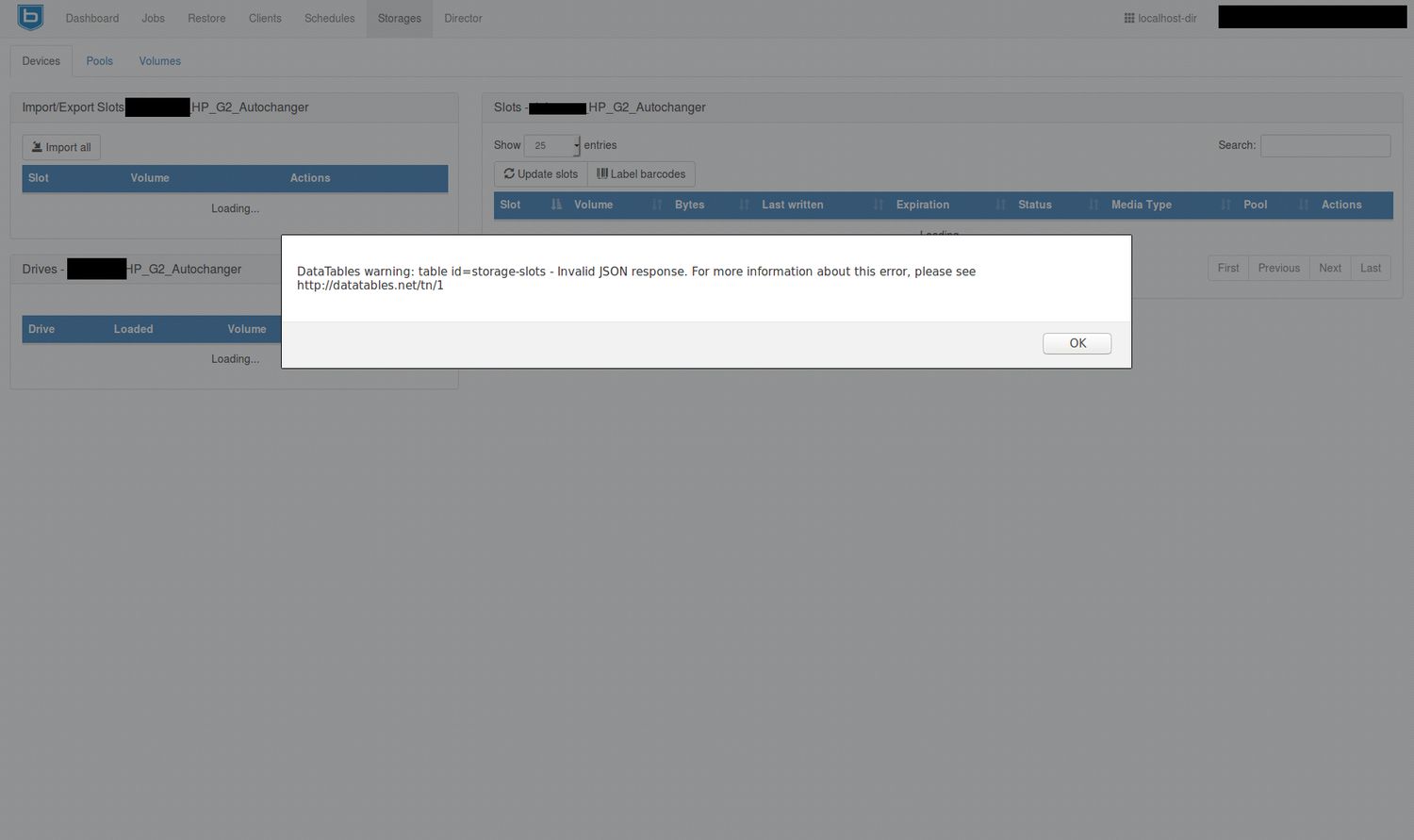

"DataTables warning: table id=storage-slots - Invalid JSON response. For more information about this error, please see http://datatables.net/tn/1"

upon clicking OK, I get:
"DataTables warning: table id=storage-ie-slots - Invalid JSON response. For more information about this error, please see http://datatables.net/tn/1"

via bconsole, I don't see any errors. I can label and list volumes, move them, etc.
Steps To Reproduce1. configure remote storage autoloader + reload sd and dir
2. login to webui
3. click storages
4. click "manage autoloader"
Additional InformationIn the webui, I can successfully import volumes with "import all". The drive and the slots show up, and I get the following message:
Connecting to Storage daemon XXXX_HP_G2_Autochanger at XXXXX.org:9103 ...
3306 Issuing autochanger "listall" command.
Nothing to do

Storage status:
Connecting to Storage daemon remote-sd_HP_G2_Autochanger at remote-sd.address:9103

remote-sd Version: 16.2.4 (01 July 2016) x86_64-pc-linux-gnu ubuntu Ubuntu 16.04 LTS
Daemon started 30-Aug-17 17:11. Jobs: run=0, running=0.
 Heap: heap=135,168 smbytes=46,171 max_bytes=2,178,242 bufs=121 max_bufs=135
 Sizes: boffset_t=8 size_t=8 int32_t=4 int64_t=8 mode=0 bwlimit=0kB/s

Running Jobs:
No Jobs running.
====

Jobs waiting to reserve a drive:
====

Terminated Jobs:
====

Device status:
Autochanger "HP_G2_Autochanger" with devices:
   "Ultrium920" (/dev/st2)

Device "Ultrium920" (/dev/st2) is not open.
    Slot 8 was last loaded in drive 0.
==
====

Used Volume status:
VOLUMEX on device "Ultrium920" (/dev/st2)
    Reader=0 writers=0 reserves=0 volinuse=0
====

====

my configuration files:
1) bareos-dir server:
bareos-dir.d/director/bareos-dir.conf
Director { # define myself
  Name = bareos-dir
  QueryFile = "/usr/lib/bareos/scripts/query.sql"
  Maximum Concurrent Jobs = 10
  Password = "XXXX1" # Console password
  Messages = Daemon
  Auditing = yes

  # Enable the Heartbeat if you experience connection losses
  # (eg. because of your router or firewall configuration).
  # Additionally the Heartbeat can be enabled in bareos-sd and bareos-fd.
  #
  # Heartbeat Interval = 1 min

  # remove comment in next line to load dynamic backends from specified directory
  # Backend Directory = /usr/lib/bareos/backends

  # remove comment from "Plugin Directory" to load plugins from specified directory.
  # if "Plugin Names" is defined, only the specified plugins will be loaded,
  # otherwise all director plugins (*-dir.so) from the "Plugin Directory".
  #
  # Plugin Directory = /usr/lib/bareos/plugins
  # Plugin Names = ""
}

bareos-dir.d/storage/remote-sd.conf
Storage {
  Name = remote-sd_HP_G2_Autochanger
  Address = "remote-sd.address"
  Password = "xxxx2"
  Device = "HP_G2_Autochanger"
  Media Type = LTO
  Autochanger = yes
  TLS Certificate = /etc/bareos/ssl/remote-sd.crt
  TLS Key = /etc/bareos/ssl/remote-sd.key
  TLS CA Certificate File = /etc/bareos/ssl/xx
  TLS DH File = /etc/bareos/ssl/xx
  TLS Enable = yes
  TLS Require = yes
  TLS Verify Peer = yes
}

2) bareos-sd remote machine with autochanger
bareos-sd.d/director/bareos-dir.conf
Director {
  Name = bareos-dir
  Password = "[md5]xxxx2"
  Description = "Director, who is permitted to contact this storage daemon."
  TLS Certificate = /etc/bareos/ssl/remote-sd.crt
  TLS Key = /etc/bareos/ssl/remote-sd.key
  TLS CA Certificate File = /etc/bareos/ssl/xx
  TLS DH File = /etc/bareos/ssl/xx
  TLS Enable = yes
  TLS Require = yes
  TLS Verify Peer = yes
}

bareos-sd.d/storage/bareos-sd.conf
Storage {
  Name = remote-sd
  Maximum Concurrent Jobs = 20

  # remove comment from "Plugin Directory" to load plugins from specified directory.
  # if "Plugin Names" is defined, only the specified plugins will be loaded,
  # otherwise all storage plugins (*-sd.so) from the "Plugin Directory".
  #
  # Plugin Directory = /usr/lib/bareos/plugins
  # Plugin Names = ""
  TLS Certificate = /etc/bareos/ssl/remote-sd.crt
  TLS Key = /etc/bareos/ssl/remote-sd.key
  TLS DH File = /etc/bareos/ssl/
  TLS CA Certificate File = /etc/bareos/ssl/
  TLS Enable = yes
  TLS Require = yes
  TLS Verify Peer = yes
}

bareos-sd.d/autochanger/HP_G2_Autochanger.conf
Autochanger {
  Name = "HP_G2_Autochanger"
  Device = Ultrium920
  Changer Device = /dev/sg5
  Changer Command = "/usr/lib/bareos/scripts/mtx-changer %c %o %S %a %d"
}

bareos-sd.d/device/Ultrium920.conf
Device {
  Name = "Ultrium920"
  Media Type = LTO
  Archive Device = /dev/st2
  Autochanger = yes
  LabelMedia = no
  AutomaticMount = yes
  AlwaysOpen = yes
  RemovableMedia = yes
  Maximum Spool Size = 50G
  Spool Directory = /tmp
  Maximum Block Size = 2097152
# Maximum Block Size = 4194304
  Maximum File Size = 50G
}
TagsNo tags attached.
bareos-master: impact
bareos-master: action
bareos-19.2: impact
bareos-19.2: action
bareos-18.2: impact
bareos-18.2: action
bareos-17.2: impact
bareos-17.2: action
bareos-16.2: impact
bareos-16.2: action
bareos-15.2: impact
bareos-15.2: action
bareos-14.2: impact
bareos-14.2: action
bareos-13.2: impact
bareos-13.2: action
bareos-12.4: impact
bareos-12.4: action

Activities

chaos_prevails

chaos_prevails

2017-08-31 16:03

reporter

chaos_prevails

chaos_prevails

2017-08-31 16:05

reporter

chaos_prevails

chaos_prevails

2017-08-31 16:06

reporter   ~0002716

I forgot to mention: with the director installed on the remote machine, there are no JSON error messages

Issue History

Date Modified Username Field Change
2017-08-31 16:03 chaos_prevails New Issue
2017-08-31 16:03 chaos_prevails File Added: bareos-webui_error1.jpg
2017-08-31 16:05 chaos_prevails File Added: bareos-webui_error2.jpg
2017-08-31 16:06 chaos_prevails Note Added: 0002716
2017-09-01 12:17 frank Assigned To => frank
2017-09-01 12:17 frank Status new => assigned
